The INTERNAL Mic
For Acoustic Guitars
About the Internal Mic Capsule

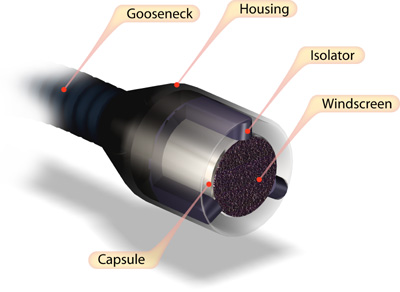

The Internal Highlander Mic features a miniature, low noise, hi fidelity, omni-directional mic capsule, presision engineered to deliver the high quality sound that musicians have come to expect from Highlander. To isolate the Mic capsule from unwanted vibration, it is mounted in its housing using an isolating / 'shock absorbing' material. The capsule’s housing is mounted on a professional, miniature gooseneck.
Mic Capsule Specifications:
Technology: Electret Condenser (charged membrane)
Pickup Patern: Omin-directional
Frequency Response: 20Hz to 22KHz
Sensitivity: -42dB
S/N Ratio: > -80db
Power: 4V (nominal) @ 200uA
About the Internal Mic Preamp

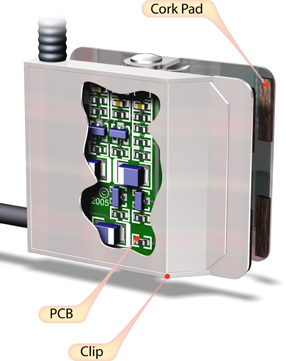

The Internal Highlander Mic features a class 'A', miniature, no noise, hi-fidelity preamplifier that is mounted in the clip. This discrete, complimentary design brings an unrivaled level of warmth and clarity to instrument microphones.
Four synthetic cork pads ensure the mic attaches securely to a back brace and stays put.
Overall frequency response of the mic when mounted inside a guitar is: 20Hz > 22KHz
Note: The upper limit (22KHz) is a function of the the capsule design.
Preamplifier Specifications:
Frequency Response of the Preamp: Specially tailored to 400KHz at the top end.
Harmonic Distortion: < 0.004%
S/N Ratio: > -100dB
Output Impedance: < 80ohms
nominal output level: -10db
headroom: 19db (ref. -10db)
Power: 9V @ 200uA
Mic on its own > 1000 hours of battery life
iP-2 + Mic > 500 hours of battery life
About the Internal Mic's Connections & Power

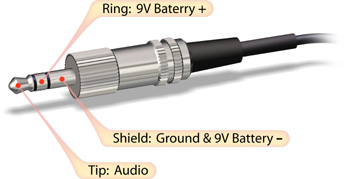

Audio is connected via the tip of the 3.5mm stereo mini jack.
9V battery power is deliverd to the mic preamp and capusle via the ring of the mini jack.
Ground and 'battery negative' are connected to the shield
When powered from an iP-2 the combination will run for 500 hours (appox) on a single 9V battery. The Stand Alone Model will run for 1000 hours if used on it's own. As phantom power is not required, the Mic can be used with any one of the wide variety of amps and sound systems that are available today.
